Why Electro Pneumatic Regulators Are Essential for Precision Control?

These days, precise control of pressure is of great importance in many fields. Robotics, manufacturing, medical technology, and lab automation all need precise control of air pressure. To achieve such levels of control, electro pneumatic regulators are used. By using both electronics and pneumatics, these regulators are fundamental in engineering.

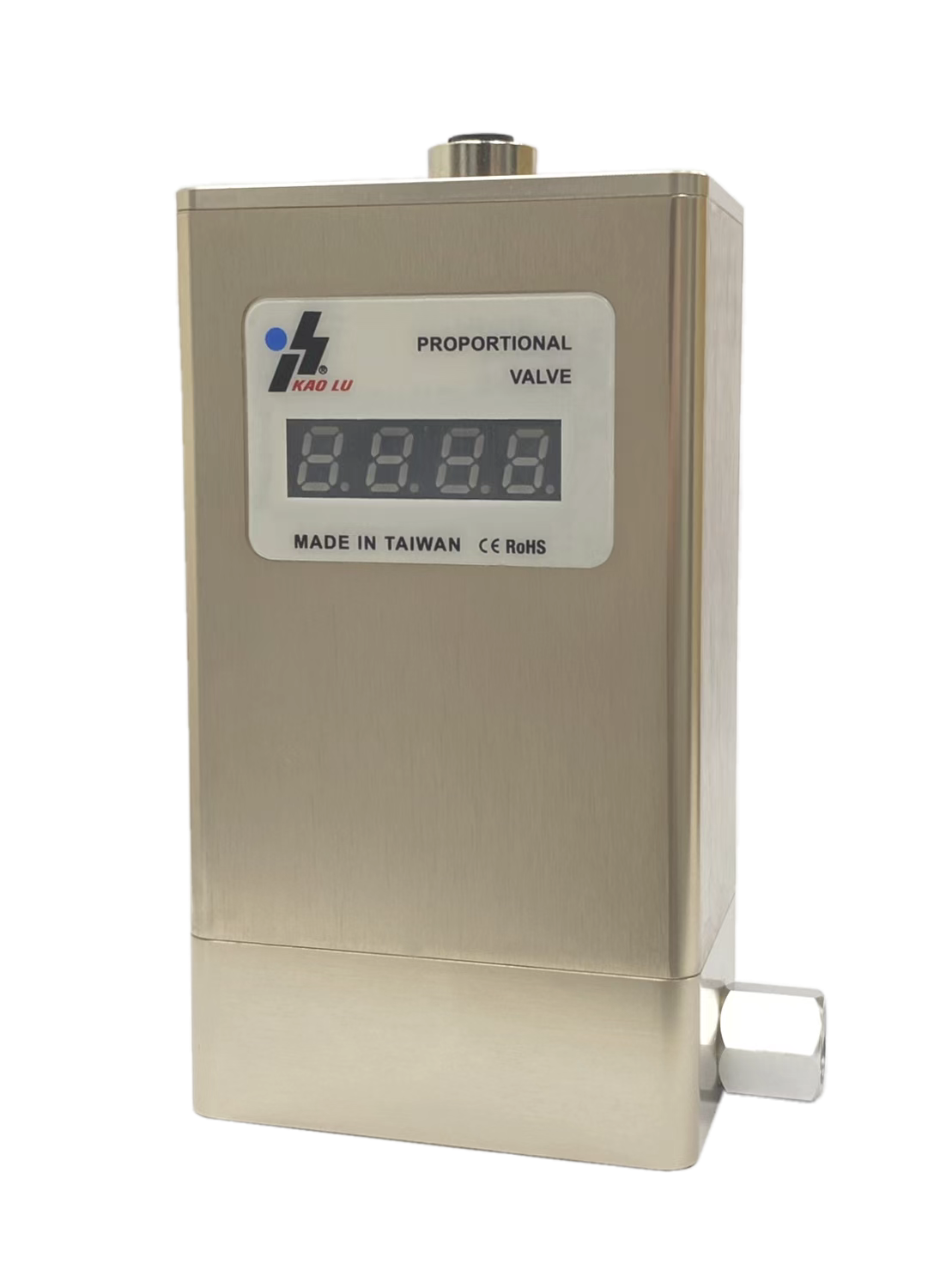

What is an Electro Pneumatic Regulator?

An electro pneumatic regulator is an example of pressure control technology. It takes in an electrical signal and, according to the regulator’s definition, will convert the signal to a pneumatic output of air that is proportional to that pressure gauge. Rather than using mechanical means, electro pneumatic regulators employ electric control systems for more accurate thresholds.

Electric Input = Command Command

Pneumatic Output = Controlled Air Pressure

Feedback Mechanism = Holds the precision automatically

This is why industry was able to achieve pressure suitability required for precise processes.

How Electro Pneumatic Regulators Work

An electro pneumatic proportional pressure Regulator works using an electronic control circuit that puts out voltage or current signals. These signals open and close one or more solenoid valves, thus regulating the amount of air that gets into the system. A pressure sensor is able to monitor pressure in real time and thus assesses the set pressure needs of the system.

Step-by-step working principle:

• An electronic control signal is sent (e.g., 0–10V or 4–20mA).
• The solenoid valve changes the amount of pressure.
• The pressure sensor measures the output pressure.
• The feedback loop analyzes achieved pressure against set pressure.
• The regulator employs micro adjustment for precise control.

Key Benefits of Using Electro Pneumatic Regulators

With the distinctions of accuracy and dexterity, electro pneumatic regulators have the following key benefits of precision control, high response time, ease of programmability, stability, and versatility to pressure levels:

• High precision – ability to control pressure of a confined pressurised to the vessel.
• Fast response time – instantaneous corrections for uniform output.
• Programmability – simple connection to PLC and other automation tools.
• Stability – constant pressure even during fluctuations in supply.
• Versatility – equally efficient in high and low pressure.

Applications of Using Electro Pneumatic Regulators

As Accuracy is a must, Electro Pneumatic Regulators have application in various industries.

Industrial Applications:

• Smooth control in robotics
• CNC machines for stable cutting
• Automated packaging for efficient seal and fill

Medical Applications:

• Ventilators with controlled airflow for patients
• Laboratory analyzers to maintain pressure in delicate experiments

Automotive & Aerospace:

• Flight simulators
• Engine testing systems
• Fuel and air ratio testing

The Importance of Precision Control

The pressure control while maintaining accuracy also ensures efficiency, safety, and enhanced quality of the end product.

• Severe life and death consequences in the medical field.
• Unregulated robotics systems causes erratic and jittery maneuvers.

In the aerospace industry, precision is key, even a small margin could result in catastrophic failure.

There are no safety risks associated with the use of Electro pneumatic regulators as they always provide consistent results.

Prior to Use Instructions

When considering what type of equipment to use, the industry should focus on the following:

• The application of the equipment (high and low pressure)
• The exact need of the equipment (with the need of functionality)
• Rapid response (milliseconds vs. seconds)
• The proportionality of the equipment (Compact for the medical industry, larger for the industrial)

Overall performance (value for money)

Example:

Standard industrial electro pneumatic regulator → Price around $80

Compact medical use regulator → Price around $30–$40

High performance aerospace grade regulator → Price $70+

Future of Electro Pneumatic Regulators

Smart factories and the use of Industry 4.0 are favorable of Applied Electro Pneumatic Regulators. Next gen models offer :

• Enhanced Digital displays for instant monitoring
• Providing IoT to allow for remote changes
• Predictive Maintenance through the use of AI

More advanced Electro Pneumatic Regulators will be crucial for precise control in Industry 4.0 smart factories.

Conclusion:

The devices are no longer considered optional accruements as they are the backbone of systems like automotives, health care and aerospace. Electro pneumatic regulators put forth accurate and precise control to the systems as well as controlling the pressure.

For businesses that need precision and consistency with the utmost safety, a high quality electro-pneumatic regulator is one of the best investments to make.
